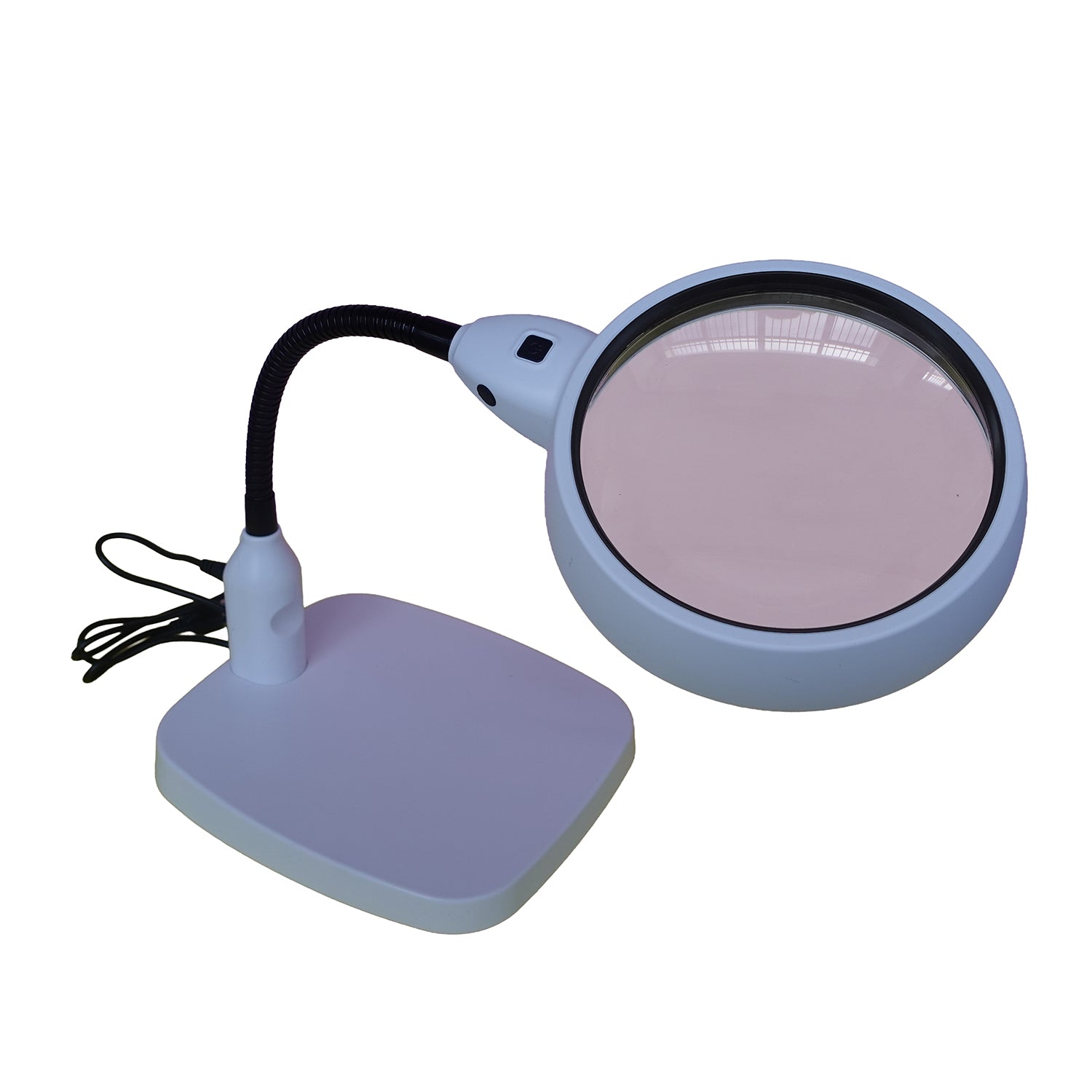

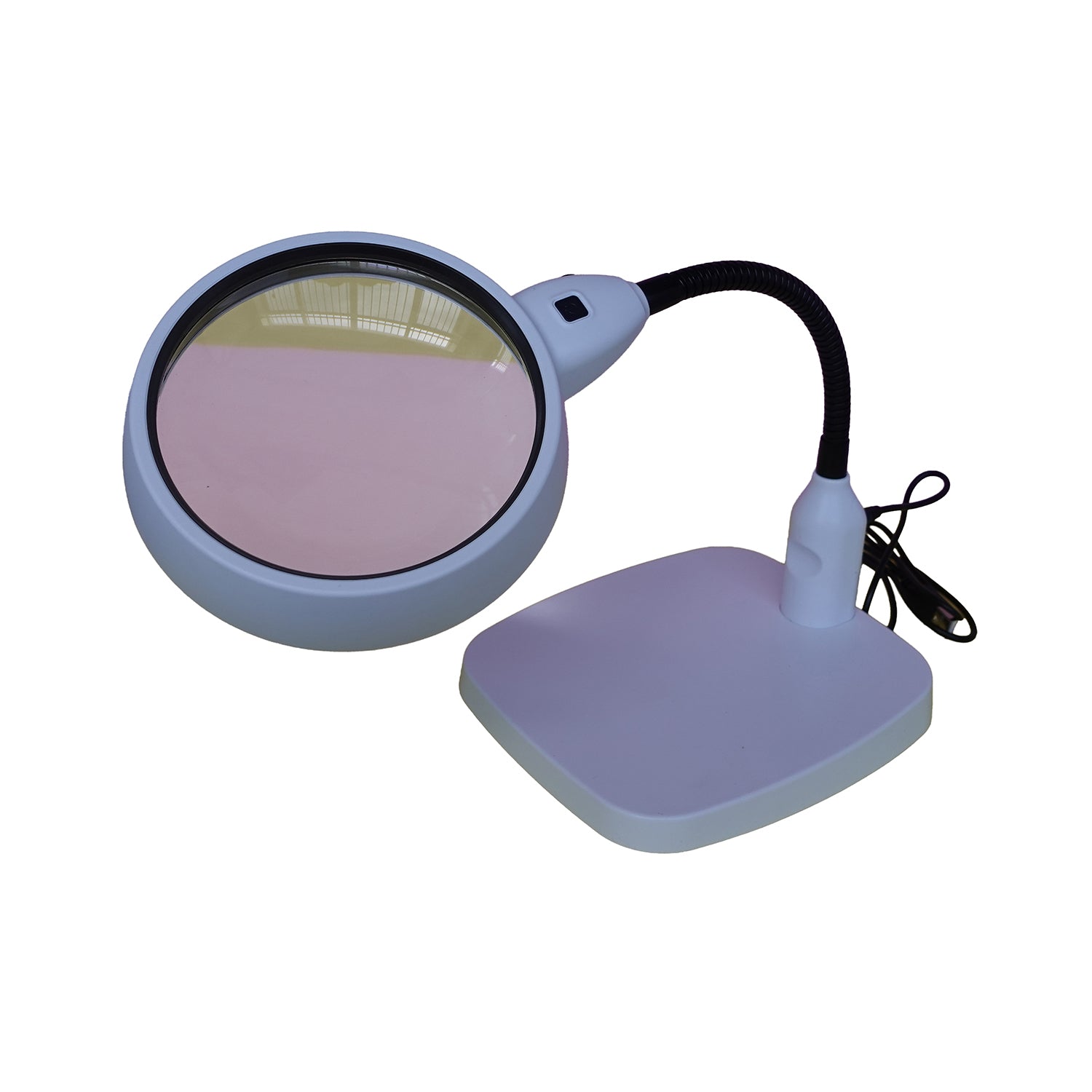

Very large hands-free gooseneck desk magnifier, illuminated, 130mm lens

Summary

Exceptionally good quality and quite large lens. Although the lens is only 10mm dia. larger than its smaller sister (DT120C), that 10mm = 20% larger in area which really makes a difference, just lovely to use.

Personally, I like it not having an extra inset lens, I find them distracting, if you really want an extra closeup lens, select a free pocket magnifier from the list of free gifts.

Also see our clearance magnifiers.

Technical

Light: rim of 18 LED lights, can be switched to white (’cold’ light) orange (‘warm light), or in between the two. For workshop repairs use the white light; for reading at night a warmer light is easier on the eyes.

Power: 2 AAA batteries or USB (cable supplied)

Approx size in use: 200mm (8 inches) tall; 170mm (7 inches) wide; 280mm (15 inches) deep.

Item weight (not posting weight): 2000g

Origin: imported from China by QUICKTEST.

The Photos

The photos looking through the lens have not been enhanced, this really is the magnification. Because it was broad daylight we forgot to turn the light on, which would have made the image brighter and more spectacular.

Mag, size, WD

Magnification, lens size, working distance.

Be aware that lens size, magnification and working distance are connected. This is due to the laws of physics, it is not a choice, this applies to all simple lenses (i.e. not microscopes and telescopes).

You want the largest lens? A 150mm diameter lens will give a magnification somewhere between about 1.2X and 2X with a working distance somewhere between 250 and 350mm (10 to 14 inches). Ample room to manoeuvre a large object but not very powerful.

You want a powerful lens?  8X magnification will give you a lens of between 15 to 25mm in diameter and a working distance of about 25mm (1 inch).

You want a very large lens with a high magnification? This is not possible with a simple lens. Consider one of the following: a surgeon’s binocular headband magnifier (it uses two small telescopes not ‘simple’ lenses); a low-power bench microscope (but select the lowest magnification) or a video microscope.

Want to know all about magnification and find the best type of magnifier for your application?  See magnifiers and magnification.

Free gift details

If you would like one of the following free gifts with this product, select one from “Select your free gift” above.

	Bar Magnifier, large. 1.2x+6x, 210mm long [cl] (RRP £2.00 )
	Folding Magnifier - round, in hard case [cl] (RRP £3.00 )
	Stand Magnifier, 10X30 (10X mag / 30mm lens dia.) [cl] (RRP £3.50 )
