Diamond Gauge fan out for different cuts
Diamond Gauge fan out for different cuts
  • Load image into Gallery viewer, Diamond Gauge fan out for different cuts
  • Load image into Gallery viewer, Diamond Gauge fan out for different cuts

Diamond Gauge fan out for different cuts

Vendor

Ref: DGFAN/MULTI

Regular price
£12.50
Sale price
£12.50
Regular price
Out of stock
Unit price
per
inclusive of VAT. Shipping calculated at checkout.

Need help? Email us today

Pickup available from Quicktest (WD18 8PH)
Email us or call on 01923-220206 for appointment.

Details

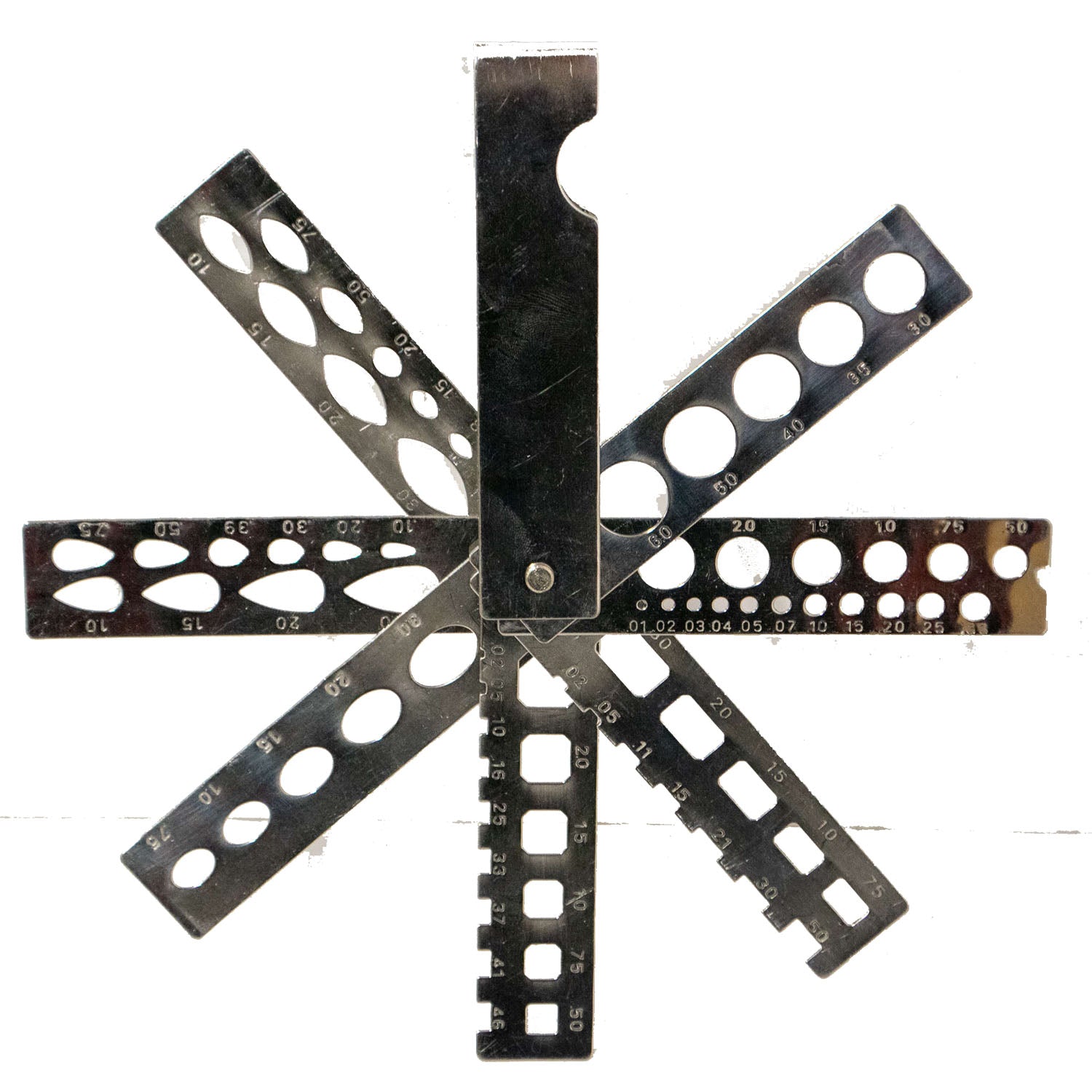

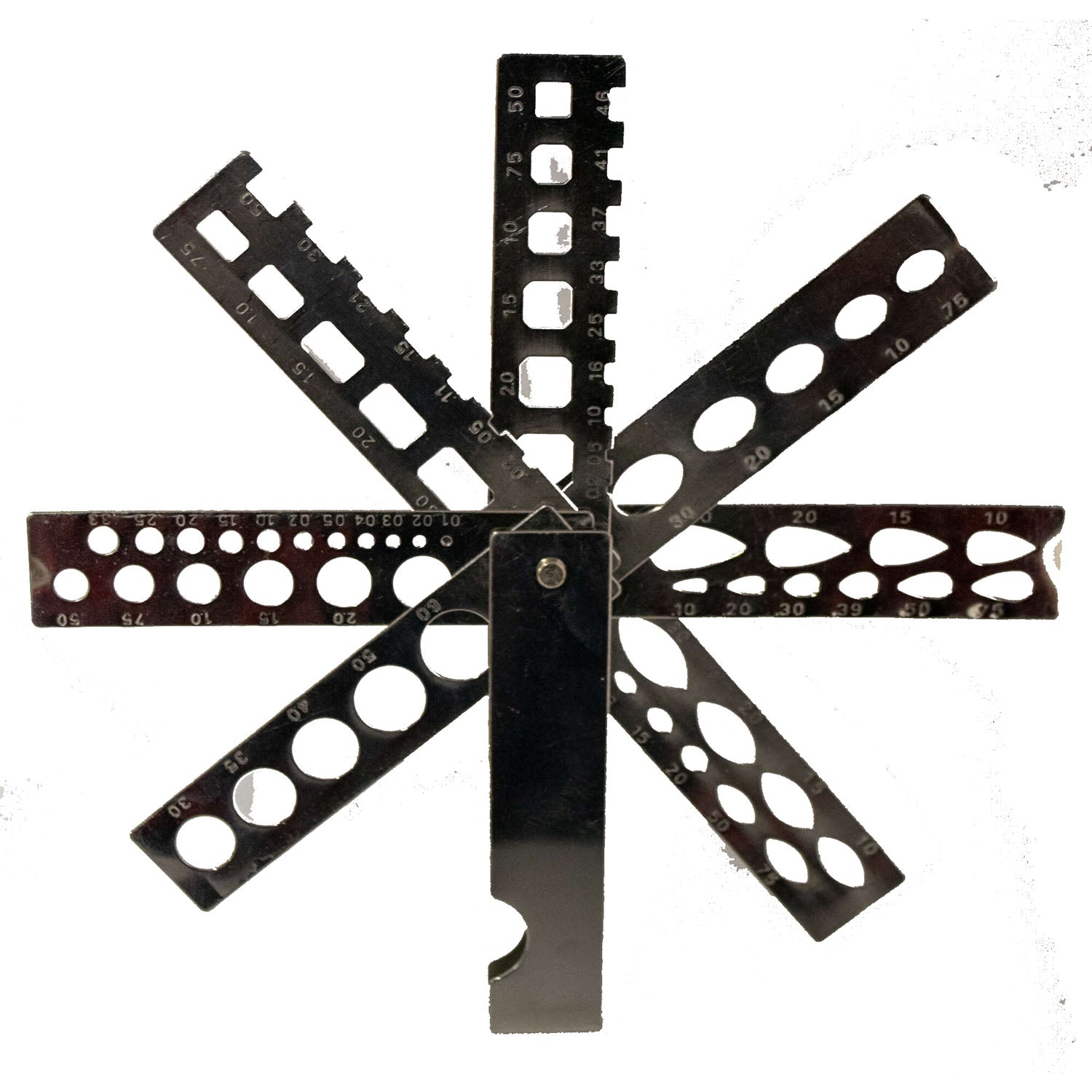

Seven steel arms swing out of a steel casing, this model has the most sizes (including huge sizes).

The gauge itself measures, when folded, 90mm X 20mm X 5mm.

SIZES (points / carat):

Round

01  02  03  04  05  07  10  15  20  25  33  50  75  1.0  1.5  2.0  2.5  3.0  3.5  4.0  5.0  6.0

Oval

02   08   15   20   50   75  1.0  1.5  2.0  3.0  75  1.0  1.5  2.0  3.0

Square

0.2  0.5  .10  .16  .25  .33  .37  .41  .46  .50  .75  1.0  2.0  3.0

Oblong (step-cut)

02   05   11   15   21   30   50   75  1.0  1.5  2.0  2.0

Peardrop

10  20  30  39  50  75  1.0  1.5  2.0  3.0
